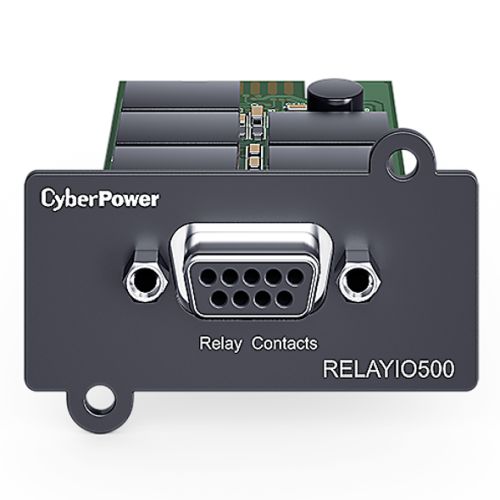

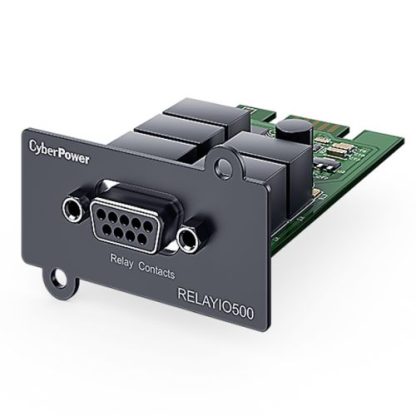

CyberPower RELAYIO500 Relay Control Card, Dry Contact Relay Card for RMCARD Slot, Serial DB9 Port, UPS Status Monitoring

Name: CyberPower RELAYIO500 Relay Control Card, Dry Contact Relay Card for RMCARD Slot, Serial DB9 Port, UPS Status Monitoring
Brand: CYBERPOWER
SKU: RELAYIO500
Availability: InStock

£62.31

Description

Specification

Type: Relay Control Card
Interfaces: Serial DB9 Interface Port
Environment: “Operating Temperature: 0 ~ 40°C
Operating Relative Humidity (Non-condensing): 0 ~ 95%
Operating Elevation: 0-9,843 feet (0-3,000 meters)
Storage Temperature: -15 ~ 45°C
Storage Relative Humidity (Non-condensing): 0 ~ 95%
Storage Elevation: 0-49,213 feet (0-15,000 meters)”
Dimensions: 54 x 36.1 x 80.7 mm
Weight: 52g
Additional Features: Dry Contact Relay
UPS Status Monitoring
RoHS Compliant
Plug-and-play Installation
Power Dissipation: 1.35 Watts
Shut Down UPS: Yes
Dry Contact Relay: 5 pcsClick here for compatible products
Package Type: Retail
Package Weight: 0.3000 kg
Warranty: 2 Years – direct with CyberPower

Compare

SKU: RELAYIO500 Category: UPS Tags: CyberPower RELAYIO500 Relay Control Card, Dry Contact Relay Card for RMCARD Slot, Serial DB9 Port, UPS Status Monitoring Brand: CYBERPOWER

Description

CyberPower RELAYIO500 Relay Control Card, Dry Contact Relay Card for RMCARD Slot, Serial DB9 Port, UPS Status Monitoring

CyberPower RELAYIO500 is an optional management add-on to specific CyberPower UPS series. After inserting the card into the expansion port on the UPS, the card can execute multiple alerts whenever power issues occur, including UPS failures, overloads, over temperature etc. In addition, the card provides one input contact for remote UPS shutdown in battery mode.

Featuring a dry contact interface, the card is able to provide ON/OFF control of connected devices, such as triggering emergency alarms, exit lights, generators, and more. With its hot-swappable design, the UPS can remain ON while installing this product.
