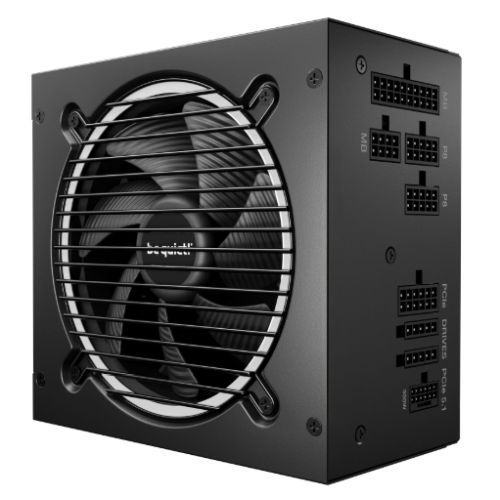

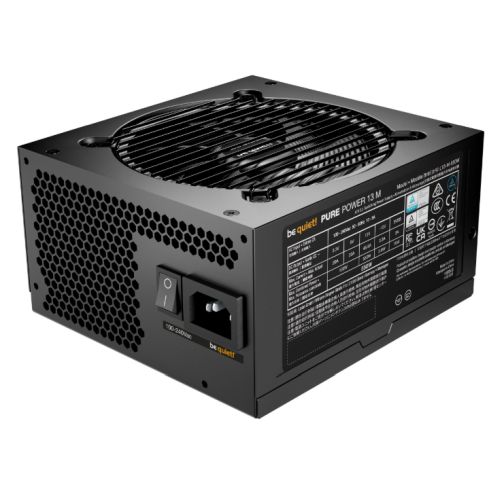

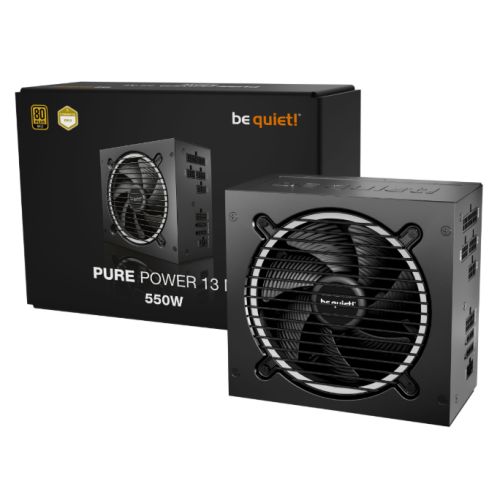

Be Quiet! 550W Pure Power 13 M PSU, Fully Modular, Semi-Passive Fan, 80+ Gold, ATX 3.1, PCIe 5.1

£79.95

Description

Specification

  • Form Factor: ATX
  • Series: Be Quiet! Pure Power 13 M
  • Wattage: 550 W
  • Modular: Fully Modular
  • Compatibility: ATX 3.1
    PCIe 5.1
    EPS 12V v2.92
  • #Hide#Wattage Range: 450 – 560W
  • Connectors: 1 x ATX-Motherboard (20+4-pin)
    1 x P4+4 (CPU)
    1 x 12V-2×6 cables
    2 x PCI-e 6+2-pin (GPU)
    5 x SATA
    2 x PATA
  • Rail Design: One Massive High-Performance 12V-rail
  • AC Input: 100-240 Vac
  • Fan Type: Exceptionally Silent Semi-Passive 120mm Fan
  • Fan Bearing: Rifle Bearing
  • Noise: 10% load: –
    20% load: 14.8 dB(A)
    50% load: 14.8 dB(A)
    100% load: 20.8 dB(A)
  • Max Certification: Gold
  • Efficiency: “80+ Gold
    230V, 2% load: 70.3%
    230V, 10% load: 90.1%
    230V, 20% load: 92.8%
    230V, 50% load: 93.8%
    230V, 100% load: 92.1%”
  • MTBF: “100,000 hours”
  • Protection: OTP (over temperature protection)
    OCP (over current protection)
    OPP (over power protection)
    SCP (short circuit protection)
    OVP (over Voltage protection)
    UVP (under Voltage protection)
    SIP (Surge & Inrush protection)
  • Additional Features: See Overview
  • Package Contents: Power Supply
    Cables
    Screws
    Cable ties
    User manual
  • Weight/Dimensions: 2.23 kg
    (LxWxH) 160 x 150 x 86 mm
  • Package Weight: 3.0000 kg
  • Warranty: 10 Years
  • #Hide#ATX 3.1/3.0: ATX 3.1
Add to wishlist
Compare

Description

Exceptional quiet, superior features

Pure Power 13 M 550W is an ATX 3.1 compliant and PCIe 5.1 compatible power supply with semi-passive cooling. It offers peerless dependability with best-in-class features. Pure Power 13 M 550W offers the best combination of features with outstanding compatibility.
  • 80 PLUS® Gold efficiency (up to 93.8%)
  • ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors
  • Exceptionally silent semi-passive 120mm be quiet! fan
  • Semi-passive construction for quiet and energy-saving operation
  • LLC technology for advanced stability and voltage regulation
  • One massive high-performance 12V-rail
  • One PCIe 5.1 12V-2×6 300W and 2 PCIe 6+2 connectors for powerful GPUs
80 PLUS® Gold Certified
Very high operating efficiency
Pure Power 13 M 550W is certified 80 PLUS Gold with an outstanding efficiency rating of up to 93.8%.  The most compelling benefit: lower power consumption, consequently lower costs, and above all a cooler as well as quieter operation. Pure Power 13 M 550W is always the correct choice for quiet systems and gaming PCs!



Future-Proof Your System
Fulfills all ATX 3.1 specifications
Pure Power 13 M 550W is an ATX 3.1 PSU and comes with both native integration of the 12V-2×6 connector for next-generation PCIe 5.1 graphics cards, and 2 PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful systems of today and the ones to come.



The New Standard of Power
For massive transient loads
Pure Power 13 M offers 550W of continuous power with one massive 12V rail. Even if the graphics card demands excessive power for a short time: Pure Power 13 M 550W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.



Semi-Passive Zero-RPM Cooling
Enjoy the silence
While under low load, the fan turns off completely until its services are needed again for more demanding operations. This feature, combined with the reliable be quiet! fan and its airflow-optimized fan blades, make Pure Power 13 M 550W exceptionally silent in all load scenarios.



High-Class  Technologies
Rock-solid stability
With its LLC topology Pure Power 13 M 550W provides best-in-class voltage regulation and efficiency. That makes it perfect for building very quiet systems or upgrading gaming and media creation PCs.



Modular Cables
Utmost convenience and compatibility
Thanks to their modularity, all unnecessary cables in the system are left out. Pure Power 13 M 550W simplifies cable management and routing for a tidy-looking system. A smoother airflow results from the uncluttered layout of the system, which means lower noise and temperatures inside the case.



Additional information

Weight 3 kg
