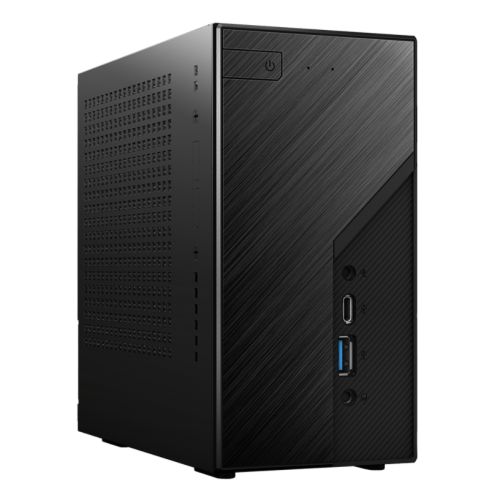

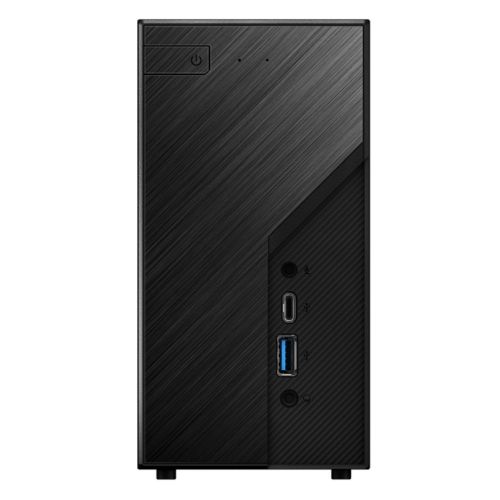

Asrock DeskMini X300 SFF Barebone PC, AMD AM4 X300, 2x DDR4 SO-DIMM, 2x SATA, 2x M.2, VGA, HDMI, DP, USB-C - No CPU, RAM, Storage or OS

Asrock DeskMini X300 SFF Barebone PC, AMD AM4 (X300), 2x DDR4 SO-DIMM, 2x SATA, 2x M.2, VGA, HDMI, DP, USB-C – No CPU, RAM, Storage or O/S

Name: Asrock DeskMini X300 SFF Barebone PC, AMD AM4 (X300), 2x DDR4 SO-DIMM, 2x SATA, 2x M.2, VGA, HDMI, DP, USB-C - No CPU, RAM, Storage or O/S
Brand: ASROCK
SKU: 90BXG3T01-A10GA0W
Availability: InStock

in Barebone PCs

Sku: 90BXG3T01-A10GA0W

£164.02

Available in stock

Features

Description Specification

#Hide#Fully Built / Barebone: Barebone
Tower / Small Form Factor: Small Form Factor
Chassis: Asrock DeskMini Mini STX
Processor: None
Processor Details: "AM4 Socket - Renoir, Picasso, Raven Ridge CPUs Max. TDP 65W Support MAX Height 46mm CPU Cooler"
Chipset: AMD X300
#Hide#Processor: None
Memory: None
Memory Details: 2 x DDR4 SO-DIMM Slots Ryzen 4000 series – 3200MHz Ryzen 3000/2000 series – 2933MHz Max. 64GB
Hard Drive: None
SSD Drive: None
Optical Drive: None
Supported Drives: 2 x 2.5"" SATA III 2 x Ultra M.2 (2280) - PCIe 1 x M.2 (key E 2230) Slot for Wi-Fi + BT Module RAID 0/1 supported
Operating System: No O/S
Front I/O: 1 x USB 3.2 Gen1 Type-C 1 x USB 3.2 Gen1 Type-A 1 x Head Phone with MIC Jack 1 x MIC-In (RealtekALC233)
Back I/O: 1 x USB 3.2 Gen1 Type-A 1 x USB 2.0 Type-A 1 x VGA 1 x HDMI 1 x DisplayPort 1 x LAN
LAN: GB LAN
Wireless: 1 x M.2 (key E 2230) Slot for Wi-Fi + BT Module - sold separately
Bluetooth: -
Power Unit: 1 x 120W/19V adapter
Keyboard and Mouse: No
Dimensions: 155 x 155 x 80 mm (1.92L)
Additional Features: See Overview
Accessories: 2 x SATA Data with Power Cable 1 x Screws Pack
Package Weight: 2.2000 kg
Package Type: Retail
Warranty: 2 Year Replacement Warranty
#Hide#Memory: DDR4

Compare Wishlist

Description

DeskMini X300

AMD AM4 Socket CPU – Renoir, Picasso, Raven Ridge, up to 65W
Supports Overclocking Option with X300
High-Speed DDR4-3200MHz Memory
Dual Ultra M.2 (NVMe)
2 x 2.5″ SATA 6Gb Hard Drive
Support RAID 0/1 function
HDMI, DisplayPort, D-Sub
M.2 For Wi-Fi Module
USB 3.2 Gen1 Type-C

Overclocking Option in BIOS

ASRock DeskMini X300 supports overclocking options. Improve system performance by tuning the core clock and release the potential of the AM4 APU.

Insane Memory Performance

ASRock DeskMini supports Dual Channel DDR4-3200+MHz (OC) memory, up to 64GB. Thanks to high speed memory and Radeon™ Graphics, DeskMini provides awesome 3D performance.

4X Storages

ASRock DeskMini supports up to 4 Storages

M2_1 M.2 (2280) –PCIe Gen3 x4

M2_2 M.2 (2280) –PCIe Gen3 x2/x4

2x 2.5” SATA 6Gb SSD/HDD Tray

Mini Home Data Center

DeskMini supports RAID 0/1 function! Build mini data center at home!

RAID 0 –offers superior I/O performance

RAID 1 –protects critical data in mirrored data

Heatsink on MOSFET

ASRock DeskMini features with Aluminum MOSFET Heatsink provides great heat dissipation to ensure system stable in loading.

Triple Display

DeskMini supports 3 display output simultaneously

Expanding desktop by multiplying your screen area. With multiple monitors, games become more immersive, workstations become more useful and you become more productive.

USB Type-C

A Type-C USB 3.2 Gen1 connector for fast charging and delivering up to 5Gbps data transfer rates.

Optional upgrades (sold seperately):

DeskMini Addressable LED
DeskMini USB Hub
Rear Audio Cable
VESA Mount Kit
M.2 Wi-Fi Kit
USB 2.0 Cable

Additional information
